AKMSU 177 Co2 BB Air Rifles

Please note - this is a commercial website

Call: +44 (0) 1344 752753 / +44 (0) 7970 541757

E-mail: rusmilitary

base

deacts

air guns

firearms

optics

equipment

clothing

AIR GUNS

AIR RIFLES

- LIMITED EDITION -

Collector's Choice

AKMSU Air Rifle

for Juniors

> PLEASE NOTE - THIS IS AN ON-GOING PROJECT CURRENTLY LIMITED TO 4 (FOUR) RIFLES DUE TO LIMITED AVAILABILITY OF PARTS !

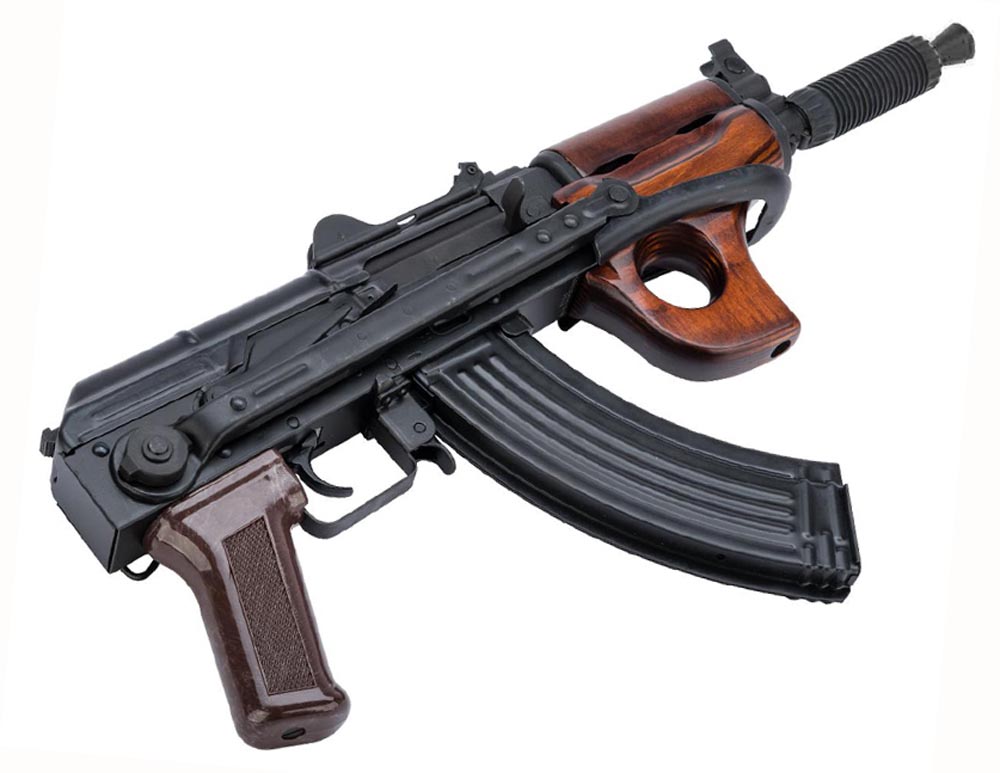

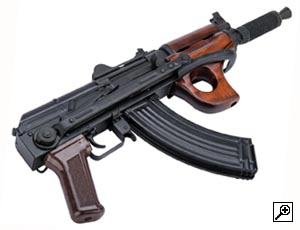

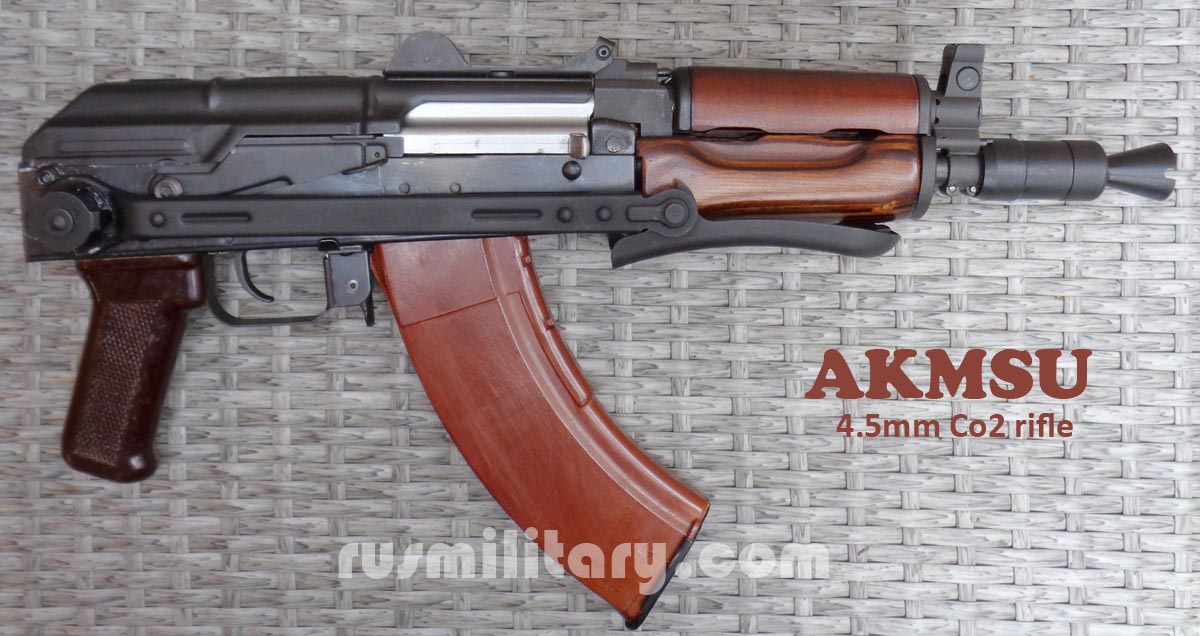

4.5mm (.177) AKMSU Co2 training air rifle

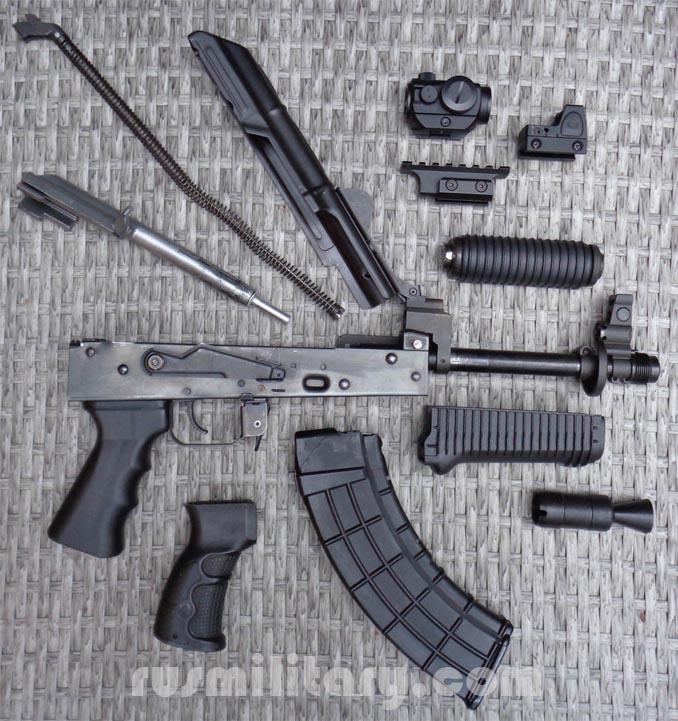

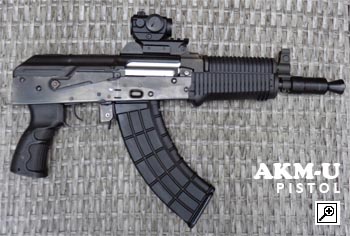

Our 4.5mm /.177 Special Edition AKMSU Co2 bb air rifles are based on real steel AKM (CyberGun Type56) receiver with a solid steel barrel (not a sleeve inside). We remove "fake" alloy parts from the factory CyberGun AK version and replace them with all new SOLID STEEL parts including underfolding butt stock (£210), rear sight structure bolted to dust cover and hinged to the front trunnionr, front sight block with flash hider, gas tube with upper HG, lower HG with retainer and trigger pin (£10) + 8 hours of labour including the use of lathe in order to reduce the barrel width in 3 places, which requires the barrel to be taken off. A real AK47 magazine filled with 7.62mm inert rounds and PBS-1 MINI replica suppressor are a perfect fit to our AK varians and are optional. UNIQUE to Rusmilitary! Essentially we build "DE-ACTIVATED" AKs with all moving parts, which are Co2 bb air rifles at the same time. They are cheaper then old spec deacts (!) and suitable for firearms training. Power upgrade comes as standard and all rifles are perfectly zeroed at our indoor range. Our latest edition: AKM-U Pistol comes without a butt stock, but with a rear trunion fitted with 1-point sling swivel, plus tactical black polymer hand guards, pistol grip and Serbian Waffle polymer magazine, converted into Co2 magazine. 80mm long Picatinny rail designed specifically to mount on top of the existing AKSU iron sight structure is optional as well as a mini Red Dot sight

Calibre, mm	4.5 (.177)
Muzzle velocity, fps	430
Weight, kg	3.0
Fire action	NBB
Magazine capacity, BBs	18
Energy, Joule (appx)	4

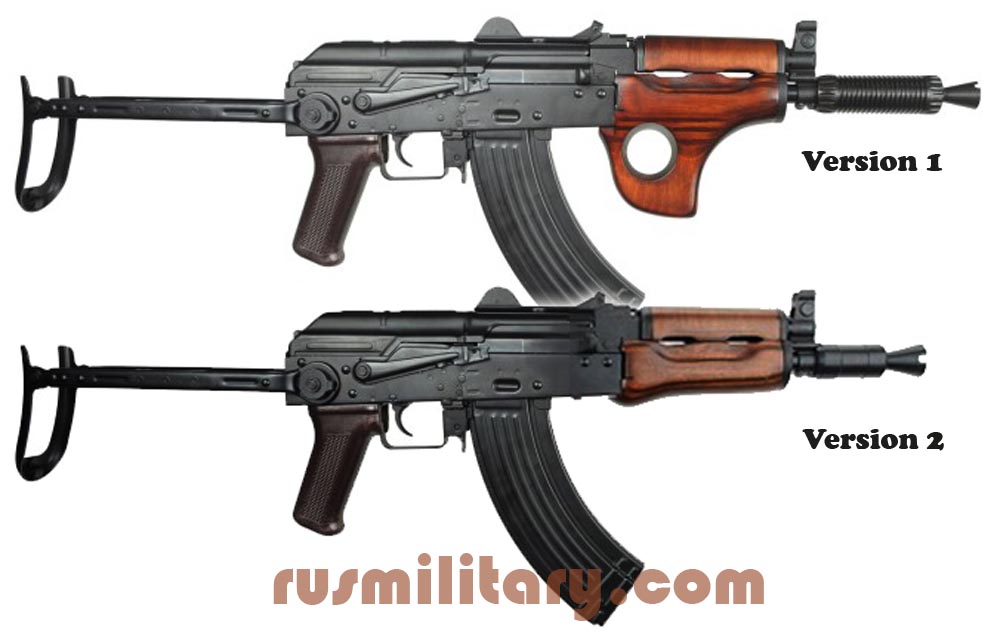

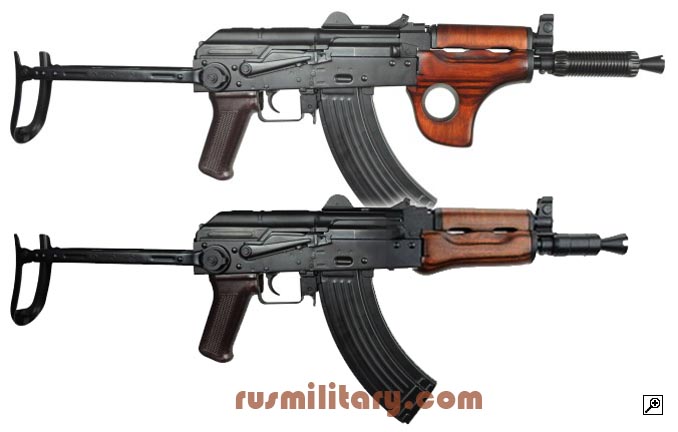

PRICE (AKMSU / Version 1)	£1,190-00
IN STOCK >>

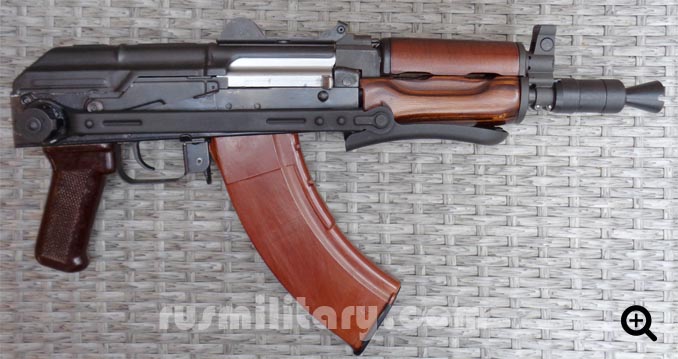

PRICE (AKMSU / Version 2)	£1,270-00
IN STOCK >>

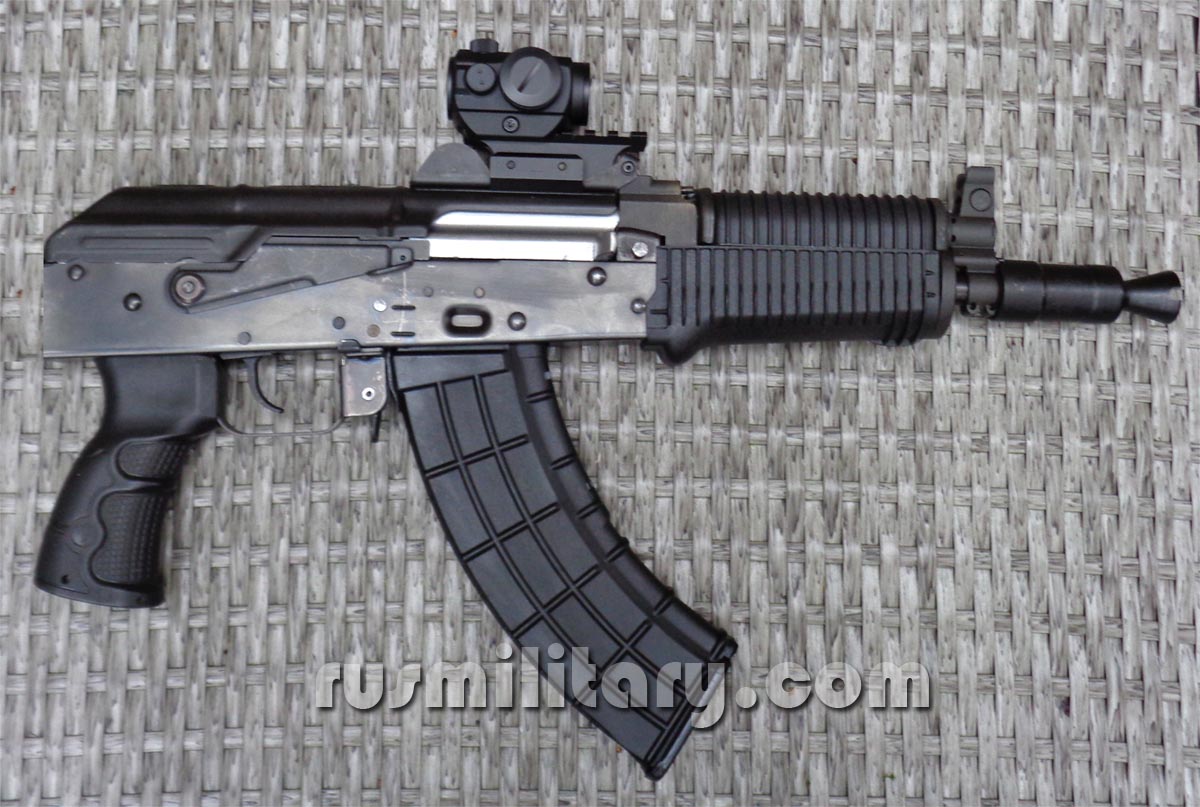

PRICE (AKM-U Pistol)	£1,200-00
IN STOCK >>

OPTIONAL accessories (NOT INCLUDED):

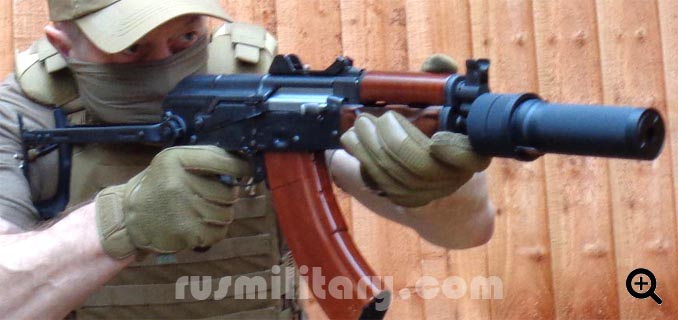

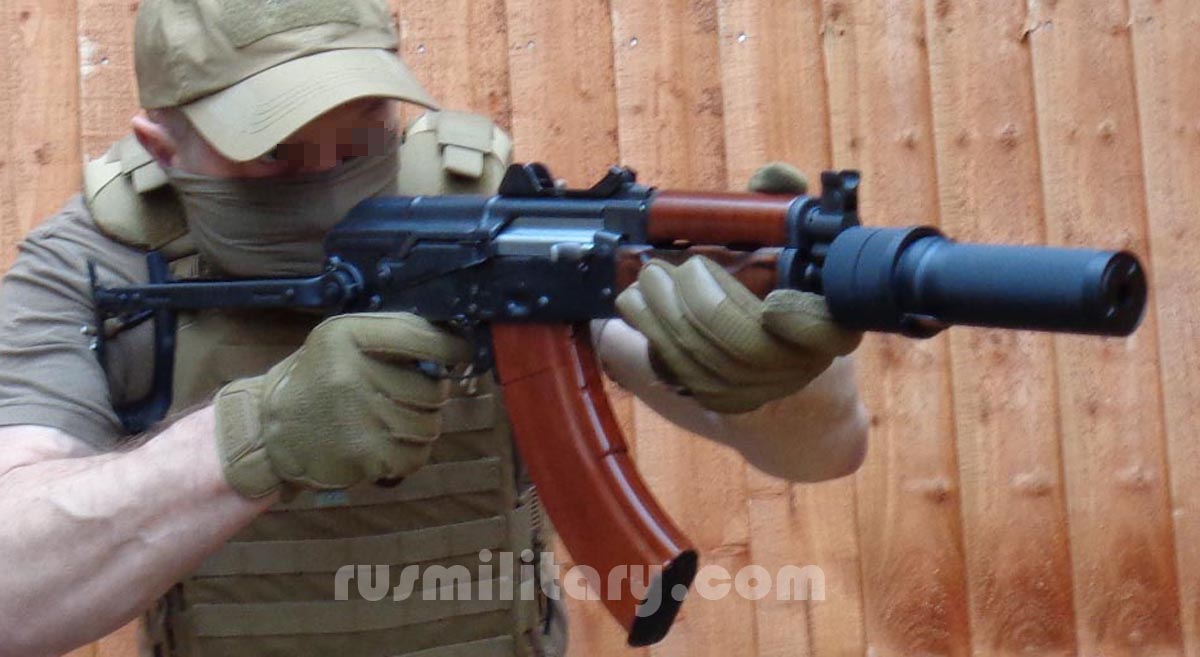

PBS-1 MINI replica suppressor = £59
AKM Soviet bakelite magazine and its conversion = £88 + £36
AK Zastava black polymer magazine and its conversion = £35 + £36
Authentic Soviet AKSU canvas sling = £32
8cm long Picatinny rail to mount on top of the existing rear sight structure £25

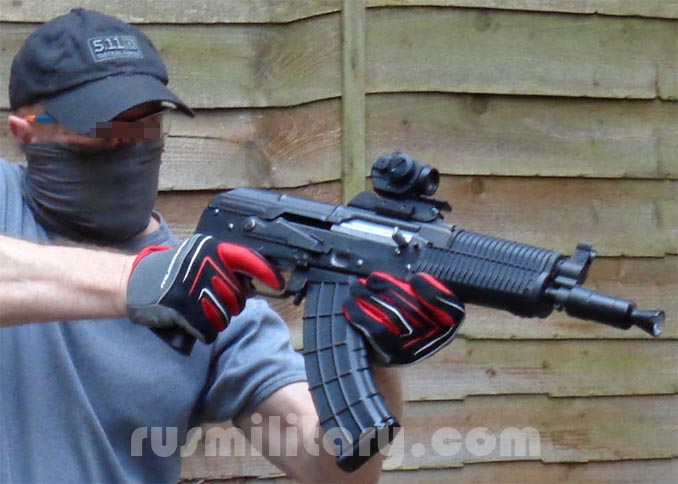

Aimpoint style Compact Red/Green Dot sight £48

Factory black polymer spare magazines* including those with power upgrade are also available. Custom-built spare bakelite and Serbian Waffle polymer magazines are aslo available, but only as a supplement to each rifle purchased

* Custom-built / converted Co2 magazines have to be fitted and tested for each individual rifle. We recommend that customers buy extra magazines at the time when ordering a rifle, so that we can fit everything properly in our workshop

>CLICK to view the latest test results: Factory Mag vs. PowerUpgrade Mag (!)

LEARN how to fit magazine properly! Practice ROCK-N-LOCK technic with just a magazine body first (Pic1), making sure the mag "neck" is lined up with the receiver (Pic2). When fitting a fully assemble magazine (Pic3), it will feel harder to pull it backwards to lock in place because of the resistance of the rubberised chamber - wait for a "click" of the rear locking lug. Make sure a BB feeding hole is lined up with the barrel (rubberised chamber). If the trigger is not working, it means the magazine is not fitted properly. If a rubberised chamber prevents the magazine from being fitted correctly with a "click", push alluminium ring (Pic3) slightly forward with a screw driver and try again (CLICK on images below to enlarge). In order to reduce air leak while punching an airbulb, use a vice to increase the leverage and rotate a magazine itself instead of a tightening bolt. CLICK to view image. CLICK here to fix misfire when magazine is properly locked inside the magwell

Conditions of purchase in the UK NO LISENCE REQUIRED ! but in accordance with Violent Crime Reduction Act (Section 33: Age limits for purchase etc of air weapons), from October 2007 customers are required to prove their age when purchasing this product in person (18 years of age or over!). The transaction of an airgun is to be conducted face-to-face or through your nearest airgun or firearms shop/ retailor. A document confirming your age will be required on collection of an airgun. The above law does not apply to customers overseas. To find your nearest Air Gun retailor search www.yell.com or come and collect by appointment

EU / Europe airguns can be shipped safely to any EU member country for just £30. All parcels are insured and trackable via internet

Non-EU countries (USA / Canada / Norway / Switzerland etc) We do NOT ship air guns outside the EU
